Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 10m / 12m / 15m / 18m 10m / 15m / 20m / 25m / 30m |
Eave Height: | 4m |
---|---|---|---|
Ridge Height: | 4.68m / 5.01m / 5.49m / 5.99m 5.58m / 6.38m / 7.17m / 7.95m |
Roof Pitch: | 18º |
Bay Distance: | 5m | Longest Component: | 5.45m / 6.5m / 8.05m / 9.65m 5.5m / 8.1m / 10.7m / 10.7m |
Minimum Tent Length: | 10m | Maximum Tent Length: | No Limit |
Roof Fixing: | Bar Tensioning | Main Profile: | 166 X 88 X 3mm (4-channel) 203 X 112 X 4mm(4-channel) 200 X 120 X 4 Mm(4-channel) 250 X 120 X 4mm(4-channel) |
Max Allowed Windspeed: | 100km/hr 0.5kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
650g/Sqm White PVC 850g/Sqm White Or Coloured PVC 950g/Sqm Clear PVC |
Printing: | Full Roof Digital Printing Available | Manufacturer's Warranty: | 10 Year Frame 3 Year White / Coloured PVC 2 Year Printed PVC / Clear PVC |
Applications: | Wedding Coperrate Events Festivals Exhibitons Sporting Events Fairs And Markets |
||
Highlight: | Customization Large Outdoor Party Tent,Customization Waterproof Event Tent,Versatile Large Outdoor Party Tent |

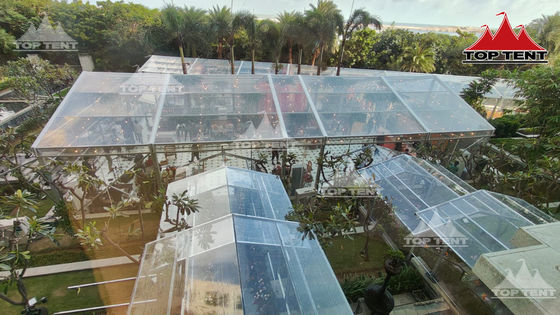

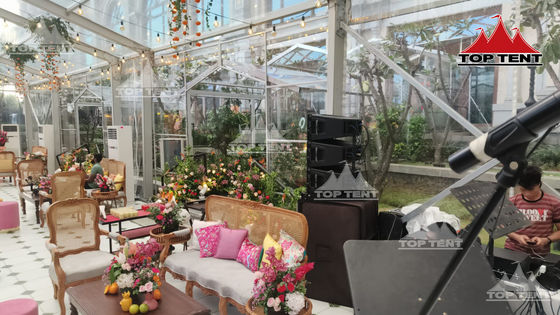

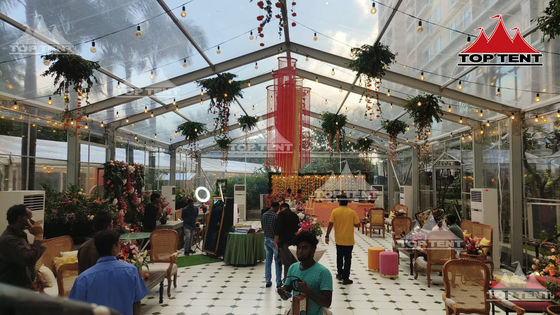

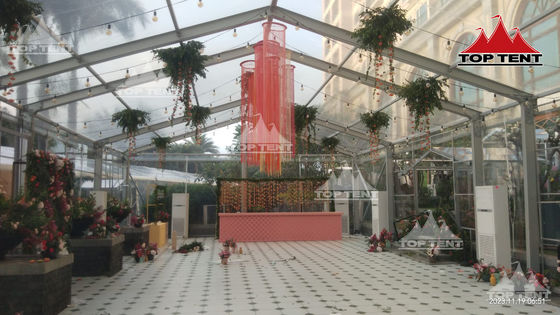

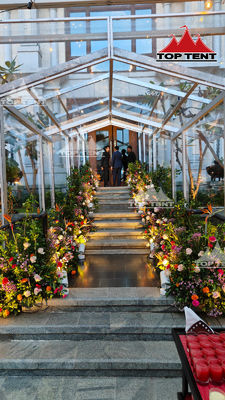

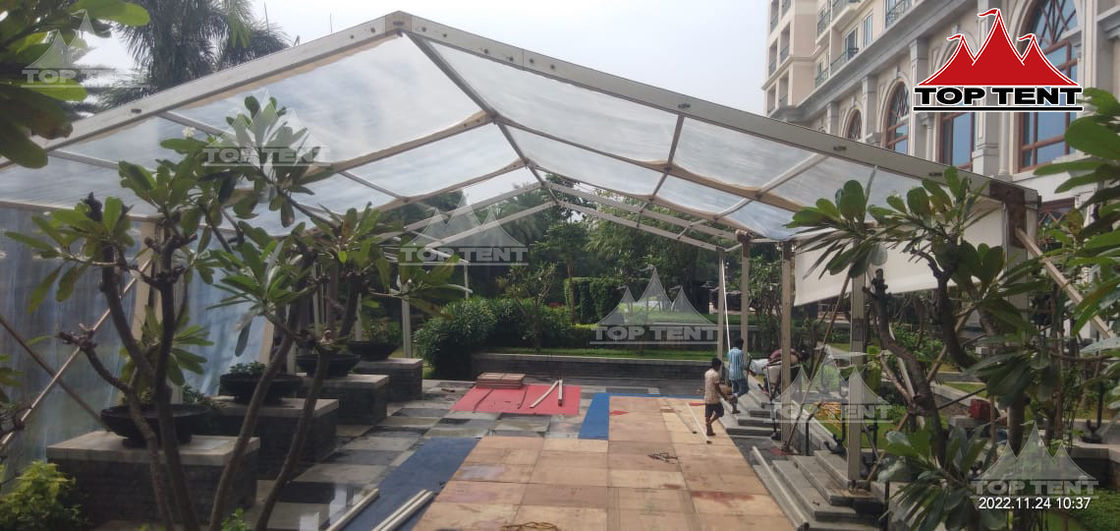

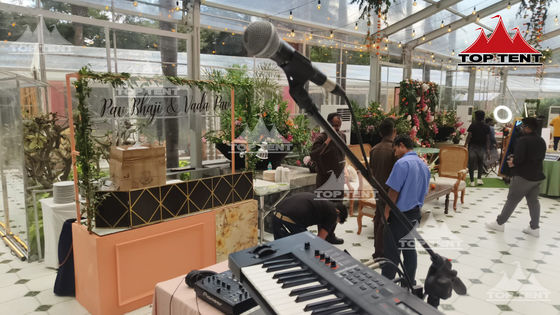

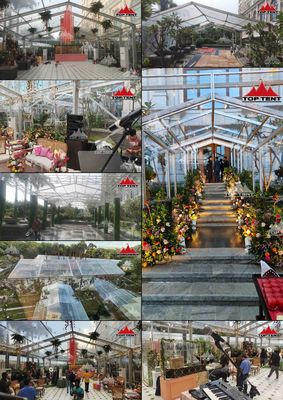

The M Series Clear Span A-Frame Tent Marquee Canopy is designed for large-scale, high-capacity events, offering unmatched strength and versatility for demanding applications. Whether hosting an upscale wedding, a high-profile corporate gala, or a major public event, the M Series delivers a robust, expansive space for exceptional experiences.

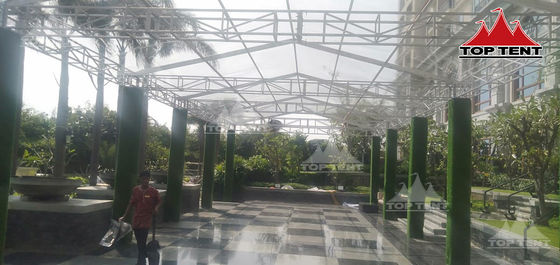

These profiles provide enhanced durability, ensuring the structure’s ability to withstand challenging environmental conditions while supporting heavy-duty applications.
The M Series stands out for its reinforced frame and expanded dimensions, making it the ideal choice for events requiring high-capacity, weather-resistant, and aesthetically impressive tent solutions. Positioned as the premium option between the G Series and larger industrial models, the M Series is the perfect blend of strength, functionality, and elegance.
