Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 10m / 12m / 15m / 18m 10m / 15m / 20m / 25m / 30m |
Eave Height: | 4m |
---|---|---|---|
Ridge Height: | 4.68m / 5.01m / 5.49m / 5.99m 5.58m / 6.38m / 7.17m / 7.95m |
Roof Pitch: | 18º |
Bay Distance: | 5m | Longest Component: | 5.45m / 6.5m / 8.05m / 9.65m 5.5m / 8.1m / 10.7m / 10.7m |
Minimum Tent Length: | 10m | Maximum Tent Length: | No Limit |
Roof Fixing: | Bar Tensioning | Main Profile: | 166 X 88 X 3mm (4-channel) 203 X 112 X 4mm(4-channel) 200 X 120 X 4 Mm(4-channel) 250 X 120 X 4mm(4-channel) |
Max Allowed Windspeed: | 100km/hr 0.5kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |

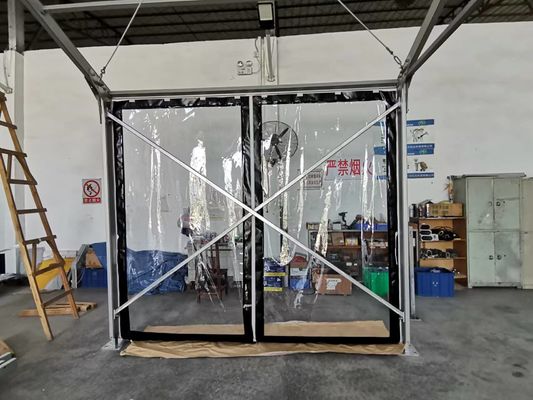

650g/Sqm White PVC 850g/Sqm White Or Coloured PVC 950g/Sqm Clear PVC |
Printing: | Full Roof Digital Printing Available | Manufacturer's Warranty: | 10 Year Frame 3 Year White / Coloured PVC 2 Year Printed PVC / Clear PVC |
Applications: | Wedding Coperrate Events Festivals Exhibitons Sporting Events Fairs And Markets |
||
Highlight: | Private Party Arcum Tent,Customizable Arcum Tent,Customizable large gathering tents |

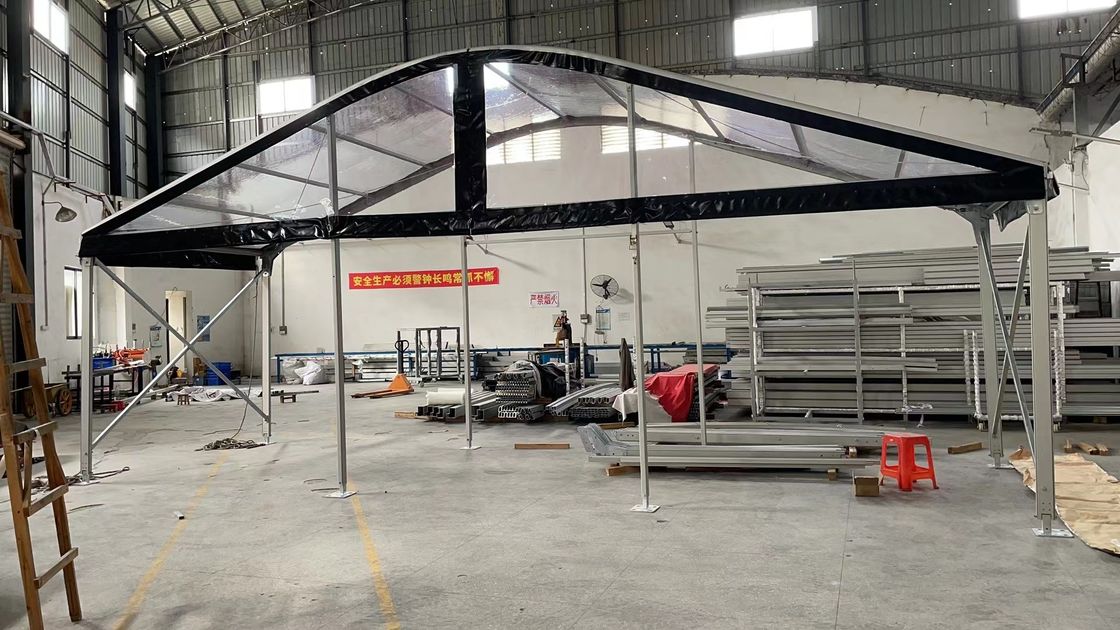

The M Series Clear Span Arcum Tent Marquee Canopy offers a sophisticated and practical solution for large-scale events. The tent's defining curved roofline, or "arched aesthetic", not only creates a visually striking appearance but also enhances its structural aerodynamics for improved wind resistance. This combination of elegance and practicality makes it a perfect choice for upscale weddings, luxury exhibitions, or grand public events.
The M Series Arcum Tent stands out with its spacious, column-free interiors, achieved through a clear span design that eliminates the need for interior support columns. This maximizes usable floor space and allows for versatile event layouts, accommodating everything from elaborate seating arrangements to specialized equipment setups.

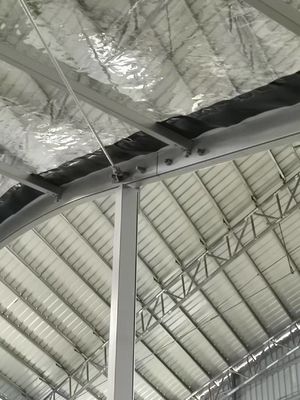

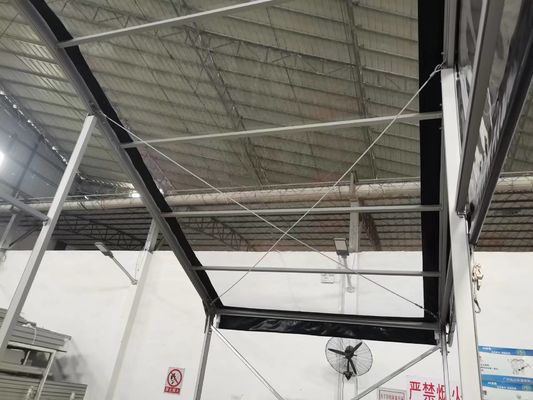

The tent's robust framework, crafted from heavy-duty aluminum profiles, ensures superior strength and stability, guaranteeing reliable performance under diverse weather conditions and during demanding event setups. The M Series Arcum Tent is strategically positioned between the G Series and L Series, offering a balance of strength, elegance, and functionality that caters to high-capacity events.
Available in a range of sizes, with widths from 10m to 30m and lengths starting at 10m and extendable indefinitely in 5m increments, the M Series offers tailored layouts to match specific event needs. The 4m eave height allows for impressive staging, intricate decorations, or the installation of specialized equipment, further enhancing the tent's versatility.
These heavy-duty profiles deliver superior strength and stability, ensuring reliable performance under diverse weather conditions and during demanding event setups.
The M Series Clear Span Arcum Tent is perfectly situated between the G Series and L Series options, offering a balance of strength, elegance, and functionality. With its robust frame, modular versatility, and modern aesthetic, the Arcum Tent is the ultimate choice for high-capacity, weather-resistant, and stylish event solutions.
