Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 10m | Eave Height: | 2.6m |
---|---|---|---|
Ridge Height: | 4.52m | Main Profile: | 100 X 48 X 3mm (4-channel) |
Max Allowed Windspeed: | 80km/hr 0.3kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
650g/Sqm White PVC 850g/Sqm White PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Coperrate Events Festivals |
Highlight: | 10x21m Clear Span Marquee Tent,150 People Clear Span Marquee Tent,White Top outdoor event marquee |

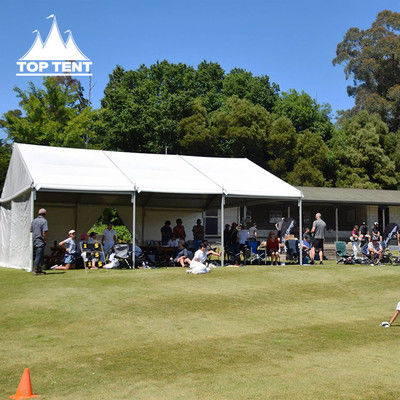

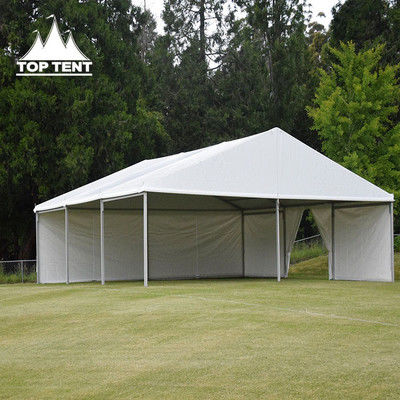

The 10x21m Aluminum Clear Span A-Frame Tent Canopy is a premium outdoor structure designed to host up to 150 guests, making it ideal for corporate events, festivals, and other large gatherings. Its clear-span width of 10m and ridge height of 4.52m offer a spacious, obstruction-free interior that can accommodate versatile layouts. Constructed with high-strength, hard-pressed extruded aluminum 6061/T6 (13HW) for the framework and covered with 650g/sqm white PVC roofing and 850g/sqm white PVC walls, this marquee tent is engineered for superior durability and weather resistance. Certified for fire resistance, UV protection, and waterproofing, it ensures safety and comfort in various environments.
The tent features a robust design, including hot-dip galvanized steel inserts for eave connections, and can withstand wind speeds of up to 80km/h (0.3kN/m²). It comes with a 10-year frame warranty and a 3-year PVC cover warranty, ensuring long-term value and reliability. With customizable sidewalls, such as open sides or windowed designs, it enhances both aesthetics and functionality.
The Aluminum Clear Span A-Frame Tent Canopy (S Series) provides exceptional versatility, making it suitable for various events. The S Series balances a sleek, modern design with practical features, ensuring it can accommodate everything from elegant weddings and lively parties to professional gatherings.
The S Series is built with a commitment to delivering safe and high-quality solutions backed by years of industry expertise. Whether you're planning a wedding, a party, or a professional gathering, the S Series provides a foundation for a memorable event.
Key Features
S2 / FD Series 100 x 48 | ||||
ITEM | SPECIFICATION | |||
Clear-Span Width | 8m | 9m | 10m | 12m |
Eave Height | 2.6m | |||
Ridge Height | 4.19m | 4.34m | 4.52m | 4.87m |
Roof Pitch | 20° | |||
Bay Distance | 3m | |||
Longest Component | 4.4m | 4.8m | 5.35m | 6.35m |
Minimum Tent Length | 6m | |||
Maxmimum Tent Length | No Limit | |||
Roof Fixing | Bar Tensioning | |||
Main Profile | 100 x 48 x 3mm (4-channel) | |||
Max Allowed Windspeed | 80km/hr 0.3kn/m² | |||
EaveConnection | Hot-dip galvanized steel insert | |||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
Printing | Full Roof Digital Printing available | |||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
Warranty | 10 Year Frame / 3 Year Fabric |
Why Choose the Top Tent A Frame Marquee Tent?
