Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 6m | Eave Height: | 2.6m |
---|---|---|---|
Ridge Height: | 3.77m | Main Profile: | 84 X 48 X 3mm (2-channel) |
Max Allowed Windspeed: | 80km/hr 0.3kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
850g/Sqm Coloured PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Coperrate Events Outdoor Gatherings |
Printing: | Full Roof Digital Printing Available | ||
Highlight: | Customised A Frame Marquee Tent,6x12m A Frame Marquee Tent,6x12m event marquee tent |

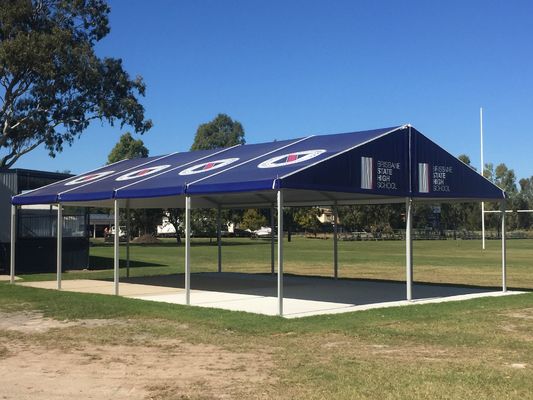

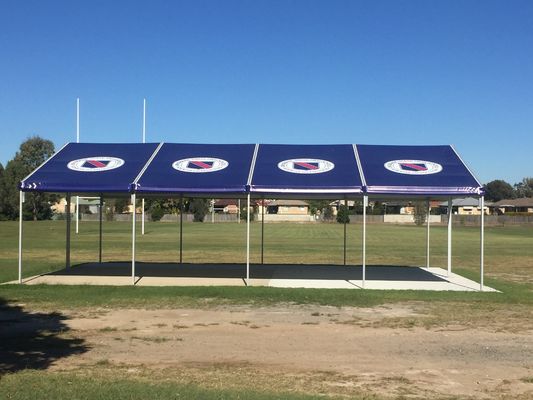

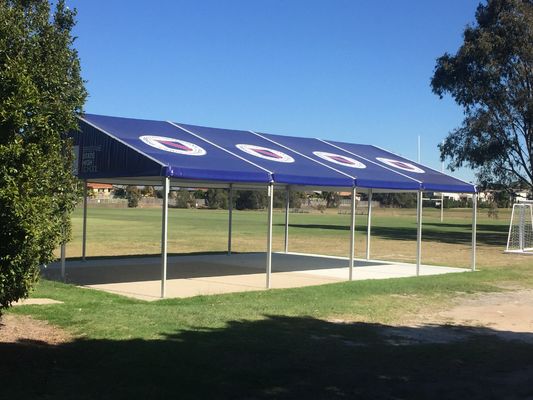

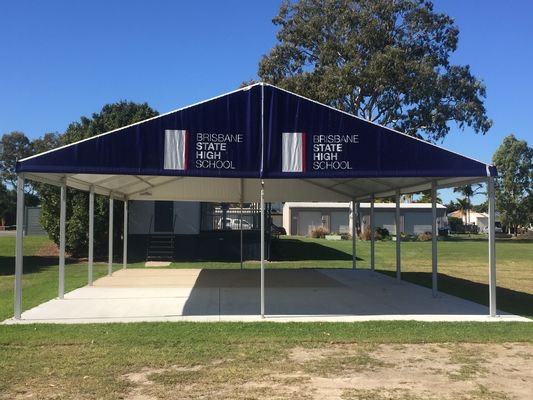

The 6x12m Aluminium A-Frame Marquee Tent Canopy is a versatile and robust outdoor structure designed for both professional and social events. With a clear-span width of 6m and a ridge height of 3.77m, this tent provides ample interior space free of obstructions, making it ideal for corporate events, outdoor gatherings, and customized setups.
Engineered with hard-pressed extruded aluminium 6061/T6 (13HW) and reinforced with hot-dip galvanized steel inserts at the eaves, the structure is built for durability and weather resistance. The tent is covered with 850g/sqm colored PVC fabric, offering protection from UV rays, rain, and wind. Certified for safety, it passes structural engineering tests, fire action analysis, and fabric resistance to water penetration. The tent can withstand winds of up to 80km/h, ensuring reliability in challenging weather conditions.
This marquee tent comes with a 10-year frame warranty and a 3-year PVC fabric warranty, guaranteeing long-term use. Fully customized roof printing is available, making it an excellent choice for branding or themed events. The standard packaging includes stretch-wrapped materials and bundled steel components, with premium options like a custom steel transport box for added convenience
Key Features
S1 / FS Series 84 x 48 | |||||
ITEM | SPECIFICATION | ||||
Clear-Span Width | 3m | 4m | 5m | 6m | 8m |
Eave Height | 2.6m | ||||
Ridge Height | 3.23m | 3.41m | 3.59m | 3.77m | 4.19m |
Roof Pitch | 20° | ||||
Bay Distance | 3m | ||||
Longest Component | 2.9m | 3.9m | 3.5m | 3.6m | 4.4m |
Minimum Tent Length | 6m | ||||
Maxmimum Tent Length | No Limit | ||||
Roof Fixing | Bar Tensioning | ||||
Main Profile | 84 x 48 x 3mm (2-channel) | ||||
Max Allowed Windspeed | 80km/hr 0.3kn/m² | ||||
EaveConnection | Hot-dip galvanized steel insert | ||||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | ||||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
|||
Printing | Full Roof Digital Printing available | ||||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | ||||
Warranty | 10 Year Frame / 3 Year Fabric |
Lightweight and Durable: The S Series boasts a compact and strong framework made from either 84 x 48 x 3mm (2-channel) or 100 x 48 x 3mm (4-channel) main profiles. This lightweight yet sturdy design is ideal for medium-sized events and can withstand challenging environments. Clients seeking portability and efficiency without compromising performance or aesthetics will find the smaller profile size advantageous.
Modular Design for Customization: The S Series offers clear-span widths of 3m, 4m, 5m, 6m, 8m, 10m, and 12m with a bay distance of 3m. This modular design allows for a minimum tent length of 6m with no upper limit, enabling customization for events of varying sizes—from intimate family gatherings to larger corporate events.
Ease of Installation and Visual Appeal: The S Series prioritizes ease of installation, durability, and a visually appealing design.
Why Choose the Top Tent A Frame Marquee Tent?
TopTent A-Frame Marquee Tents are designed to combine durability, customization, and practicality. With high-grade aluminium frames and premium PVC fabric, these tents offer reliable protection against weather while meeting rigorous safety certifications for UV resistance, fire protection, and waterproofing. Their flexibility allows for custom branding or event-specific designs, making them an excellent choice for both corporate and private events. Whether for outdoor festivals or professional gatherings, TopTent ensures quality, innovation, and long-term value through tailored solutions and robust warranties, catering to a wide range of event needs.
