Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 10m | Eave Height: | 3m |
---|---|---|---|
Ridge Height: | 4.76m | Main Profile: | 122 X 68 X 3mm (4-channel) |
Max Allowed Windspeed: | 80km/hr 0.3kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
850g/Sqm White PVC 950g/Sqm Clear PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Party |
Highlight: | High Capacity waterproof marquee,High Capacity A Frame Marquee,Weather Resistant A Frame Marquee |

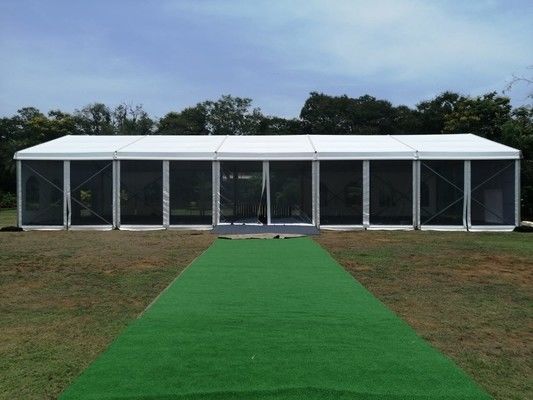

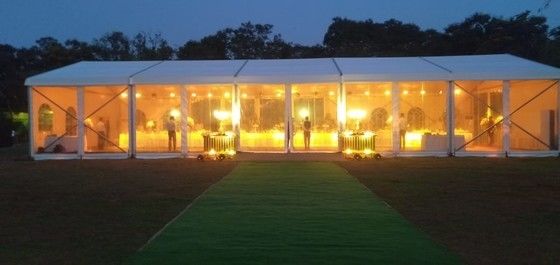

The High-Capacity A-Frame Marquee Tent Canopy with Clear Windows is an ideal choice for hosting large outdoor events, including parties and celebrations. With a 10-meter clear-span width, 3-meter eave height, and 4.76-meter ridge height, the tent provides an expansive and functional interior layout. Its structure is built with a durable 122 x 68 x 3mm (4-channel) aluminum frame, made of hard-pressed extruded aluminum 6061/T6 for maximum strength and stability. The tent is designed to endure wind speeds of up to 80km/hr (0.3kn/m²), ensuring reliability in outdoor settings.
The covering materials include high-performance 850g/sqm white PVC and 950g/sqm clear PVC, offering excellent resistance to UV rays, water, and fire, while enhancing the tent’s aesthetic appeal. These properties make the tent not only functional but also visually appealing for various events. Certifications for structural integrity, UV resistance, and water and fire protection underline its adherence to high safety and quality standards. Backed by a 10-year frame warranty and a 3-year PVC fabric warranty, it guarantees a long lifespan and value for money.
Key Features
G / ES Series 122 x 68 | |||
ITEM | SPECIFICATION | ||
Clear-Span Width | 8m | 10m | 12m |
Eave Height | 3m | ||
Ridge Height | 4.44m | 4.76m | 5.20m |
Roof Pitch | 20° | ||
Bay Distance | 5m | ||
Longest Component | 4.35m | 5.3m | 6.45m |
Minimum Tent Length | 10m | ||
Maxmimum Tent Length | No Limit | ||
Roof Fixing | Bar Tensioning | ||
Main Profile | 122 x 68 x 3mm (4-channel) | ||
Max Allowed Windspeed | 80km/hr 0.3kn/m² | ||
EaveConnection | Hot-dip galvanized steel insert | ||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | ||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
|
Printing | Full Roof Digital Printing available | ||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | ||
Warranty | 10 Year Frame / 3 Year Fabric |
Why Choose the Top Tent A Frame Marquee Tent?
TopTent A-Frame Marquee Tents are crafted with precision to meet the diverse needs of event organizers. These tents combine high-quality materials, such as lightweight but robust aluminum frames, and premium PVC covers that withstand challenging weather conditions. Their modular design allows for easy transport, quick setup, and customization to match specific requirements, including branding or thematic designs. The hot-dip galvanized steel eave connections ensure structural stability and ease of assembly.
TopTent stands out by providing efficient delivery timelines (15-20 days) and flexible packaging options, such as premium steel transport boxes for safe handling. Designed with customer convenience in mind, TopTent marquee tents are the perfect solution for creating memorable events with superior functionality and durability.
