Clear-Span Width: | 15m | Eave Height: | 4m |
---|---|---|---|
Ridge Height: | 6.38m | Main Profile: | 200 X 120 X 4mm (4-channel) |
Max Allowed Windspeed: | 100km/hr 0.5kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
850g/Sqm White PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Party Wedding |
Highlight: | Premium White Marquee Tent P,15x35m White Marquee Tent P,Premium A Frame Party Tent |

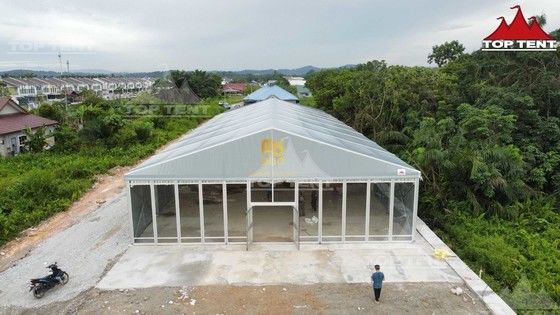

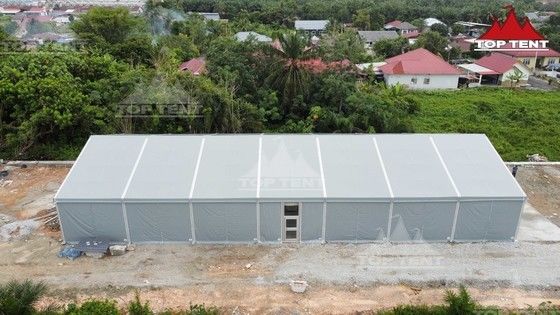

The 15x35m White PVC A-Frame Marquee Tent from TopTent offers a perfect blend of durability, style, and functionality for events such as weddings, parties, and corporate gatherings. With a clear-span width of 15 meters, an eave height of 4 meters, and a ridge height of 6.38 meters, this spacious marquee provides an open, unobstructed interior that accommodates up to 500 guests comfortably.
Constructed with a robust main profile of 200 x 120 x 4mm (4-channel) and crafted from high-quality, hard-pressed extruded aluminum 6061/T6, the frame ensures excellent stability and strength, capable of withstanding wind speeds of up to 100km/hr (0.5kn/m²). The tent’s 850g/sqm white PVC cover provides exceptional resistance to UV rays, water, and fire, making it suitable for both temporary and semi-permanent installations in various weather conditions.
This marquee tent is fully customizable, offering optional features such as PVC windows, glass walls, decorative linings, aluminum-framed doors, and flooring systems to create a personalized event atmosphere. The structure is ideal for grand weddings or elegant parties, featuring a sleek design that enhances any event setup.
Key Features
M2 / EC Series 203 x 112/200 x 120/250 x 120 | ||||
ITEM | SPECIFICATION | |||
Clear-Span Width | 10m | 15m | 20m | 25m |
Eave Height | 4m | |||
Ridge Height | 5.58m | 6.38m | 7.17m | 7.95m |
Roof Pitch | 18° | |||
Bay Distance | 5m | |||
Longest Component | 5.5m | 8.1m | 10.7m | 10.7m |
Minimum Tent Length | 10m | |||
Maxmimum Tent Length | No Limit | |||
Roof Fixing | Bar Tensioning | |||
Main Profile | 203 x 122 x 4mm (4-channel)/200 x 120 x 4mm (4-channel)/250 x 120 x 4mm (4-channel) | |||
Max Allowed Windspeed | 100km/hr 0.5kn/m² | |||
EaveConnection | Hot-dip galvanized steel insert | |||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
Printing | Full Roof Digital Printing available | |||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
Warranty | 10 Year Frame / 3 Year Fabric |
TopTent’s A-Frame Marquee Tents stand out for their superior craftsmanship, innovative designs, and commitment to customer satisfaction. Utilizing advanced engineering, these tents are built for reliability and longevity, meeting the highest safety standards with certifications in structural stability, UV resistance, and fire protection. With modular designs that are easy to transport and assemble, TopTent ensures a seamless experience from delivery to setup.
TopTent provides flexible customization options, allowing you to personalize elements like branding, roof designs, and accessories to match your unique event requirements. Supported by a 10-year frame warranty and a 3-year PVC cover warranty, TopTent delivers peace of mind and exceptional value for your investment. Whether you’re hosting a wedding, corporate event, or festival, TopTent A-Frame Marquee Tents are the ideal choice for a memorable and reliable event solution.
