Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 14m | Eave Height: | 4m |
---|---|---|---|
Ridge Height: | 6.38m | Main Profile: | 203 X 112 X 4mm (4-channel) |
Max Allowed Windspeed: | 100km/hr 0.5kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
850g/Sqm White PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Party Wedding |
Highlight: | 14x14m Large White Marquee,14x14m white party marquee,Personalized Large White Marquee |

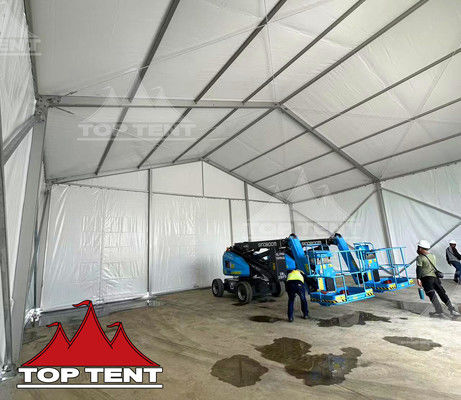

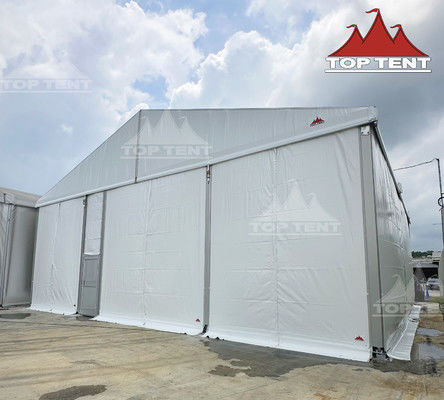

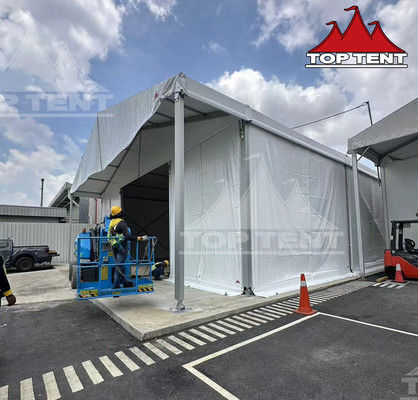

The 14x14m White PVC A-Frame Marquee Tent by TopTent is an elegant and robust solution for creating unforgettable event experiences. Whether hosting a wedding reception, a grand party, or a corporate gathering, this marquee tent ensures style and functionality. Its spacious clear-span width of 14 meters, eave height of 4 meters, and ridge height of 6.38 meters provide ample room for staging, dining, or entertainment setups.
Crafted with a durable 203 x 112 x 4mm (4-channel) aluminum main profile and reinforced with hot-dip galvanized steel eave connections, this tent is engineered to endure wind speeds of up to 100km/hr (0.5kn/m²). The premium 850g/sqm white PVC fabric is UV-resistant, waterproof, and fire-retardant, ensuring safety and longevity for both temporary and semi-permanent installations. Customizable features such as sidewalls, flooring, linings, and elegant decor options allow for a personalized touch to match any event theme.
Key Features
M2 / EC Series 203 x 112/200 x 120/250 x 120 | ||||
ITEM | SPECIFICATION | |||
Clear-Span Width | 10m | 15m | 20m | 25m |
Eave Height | 4m | |||
Ridge Height | 5.58m | 6.38m | 7.17m | 7.95m |
Roof Pitch | 18° | |||
Bay Distance | 5m | |||
Longest Component | 5.5m | 8.1m | 10.7m | 10.7m |
Minimum Tent Length | 10m | |||
Maxmimum Tent Length | No Limit | |||
Roof Fixing | Bar Tensioning | |||
Main Profile | 203 x 122 x 4mm (4-channel)/200 x 120 x 4mm (4-channel)/250 x 120 x 4mm (4-channel) | |||
Max Allowed Windspeed | 100km/hr 0.5kn/m² | |||
EaveConnection | Hot-dip galvanized steel insert | |||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
Printing | Full Roof Digital Printing available | |||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
Warranty | 10 Year Frame / 3 Year Fabric |
TopTent A-Frame Marquee Tents stand out for their exceptional engineering and dedication to quality. Designed with precision and utilizing top-grade aluminum and PVC materials, they provide unparalleled durability and ease of assembly. These tents are modular, transportable, and adaptable to various event layouts.
TopTent also offers customization, including digital printing, decorative accessories, and structural modifications, ensuring a marquee that meets your exact needs. Backed by a 10-year frame warranty and a 3-year cover warranty, along with certifications for wind resistance, fire safety, and UV protection, TopTent guarantees peace of mind and top-tier performance. From premium packaging to efficient delivery, TopTent provides a seamless experience, making your event planning stress-free and successful.
