Clear-Span Width: | 6m | Eave Height: | 2.6m |
---|---|---|---|
Ridge Height: | 3.77m | Main Profile: | 100 X 48 X 3mm (4-channel) |
Max Allowed Windspeed: | 80km/hr 0.3kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
850g/Sqm Coloured PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Coperrate Events Outdoor Gatherings |
Printing: | Full Roof Digital Printing Available | ||
Highlight: | 6x6m A Frame Marquee,6x6m Aluminium Marquee Tent,Clear Walls A Frame Marquee |
The 6x6m Aluminium A-Frame Marquee Tent by TopTent offers a robust and versatile solution for outdoor events, ensuring excellent protection and aesthetics. This tent features a clear-span width of 6 meters, with a ridge height of 3.77 meters and an eave height of 2.6 meters, providing ample space for gatherings, parties, and corporate functions. The hard-pressed extruded aluminum frame (100 x 48 x 3mm) is designed for durability, withstanding wind speeds of up to 80 km/h (0.3kn/m²).

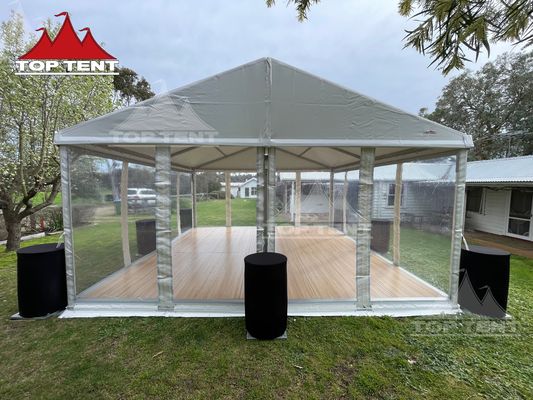

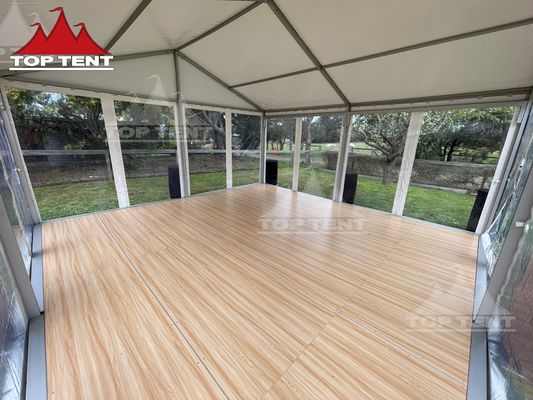

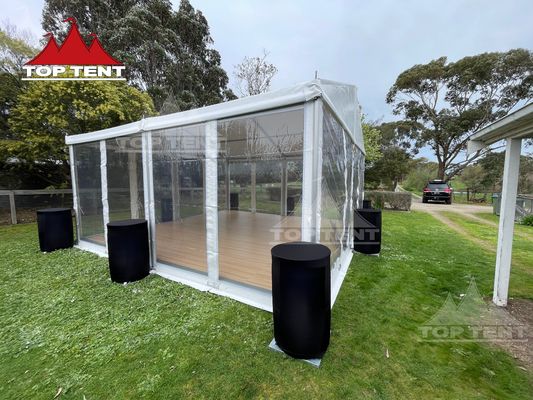

The high-quality 850g/sqm colored PVC material ensures the tent is water-resistant, UV-protected, and highly durable, making it perfect for outdoor events under various weather conditions. This marquee also features optional accessories such as clear side walls, cassette flooring systems, and custom roof printing for branding, offering a fully personalized and stylish setup for any occasion.
Key Features
S2 / FD Series 100 x 48 | ||||
ITEM | SPECIFICATION | |||
Clear-Span Width | 8m | 9m | 10m | 12m |
Eave Height | 2.6m | |||
Ridge Height | 4.19m | 4.34m | 4.52m | 4.87m |
Roof Pitch | 20° | |||
Bay Distance | 3m | |||
Longest Component | 4.4m | 4.8m | 5.35m | 6.35m |
Minimum Tent Length | 6m | |||
Maxmimum Tent Length | No Limit | |||
Roof Fixing | Bar Tensioning | |||
Main Profile | 100 x 48 x 3mm (4-channel) | |||
Max Allowed Windspeed | 80km/hr 0.3kn/m² | |||
EaveConnection | Hot-dip galvanized steel insert | |||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
Printing | Full Roof Digital Printing available | |||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
Warranty | 10 Year Frame / 3 Year Fabric |
Why Choose the Top Tent A Frame Marquee Tent?
opTent A-Frame Marquee Tents are designed with innovation and durability in mind, ensuring that every event is seamlessly executed. Made from premium materials such as hard-pressed aluminum and strong PVC, they are engineered for high performance in all weather conditions. With a simple, yet secure frame design and optional accessories, these tents can be customized to suit a variety of events and purposes.
TopTent’s commitment to quality is evident through certifications for fire protection, UV resistance, and water penetration resistance, guaranteeing a safe and long-lasting investment. Moreover, with a 10-year frame warranty and 3-year cover warranty, you can be assured that your marquee will perform reliably year after year. Whether you're hosting a corporate event, outdoor gathering, or wedding, TopTent provides the ideal balance of functionality, style, and durability.
