Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 20m | Eave Height: | 4m |
---|---|---|---|
Ridge Height: | 7.17m | Main Profile: | 200 X 120 X 4mm (4-channel) |
Max Allowed Windspeed: | 100km/hr 0.5kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
850g/Sqm White PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Outdoor Gatherings |
Highlight: | 20x30m PVC Marquee Tent,thermal insulation cotton PVC Marquee,500 People event marquee tent |

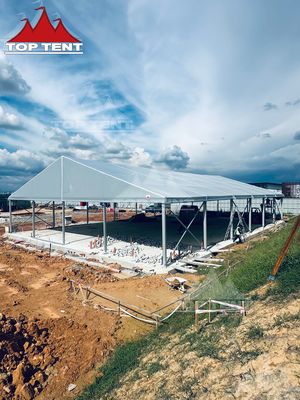

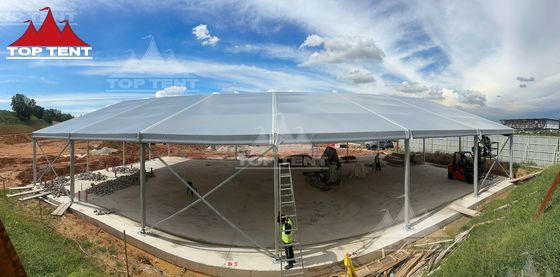

The 20x30m A-Frame Marquee Tent from TopTent is the perfect choice for large outdoor events, accommodating up to 500 people in comfort. This semi-permanent structure is designed with a clear-span width of 20 meters, allowing for an expansive, column-free interior that offers versatility for various setups. Featuring a ridge height of 7.17m and an eave height of 4m, this marquee creates a spacious atmosphere, making it ideal for weddings, parties, corporate events, and festivals.
Built with a hard-pressed extruded aluminum frame (200 x 120 x 4mm), it is designed to withstand harsh environmental conditions, including wind speeds up to 100 km/h (0.5 kn/m²). The 850g/sqm white PVC cover ensures high durability, UV protection, and water resistance, offering long-lasting protection for your event.

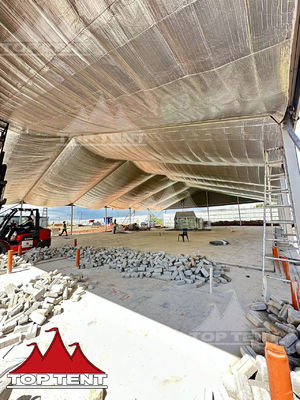

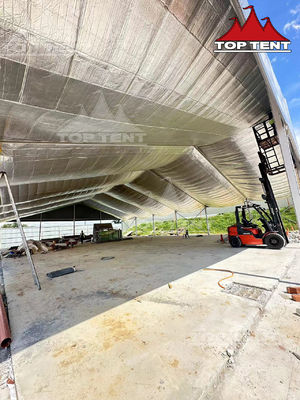

The marquee is equipped with thermal insulation cotton for added comfort, ensuring that the interior temperature remains stable even during extreme weather. Whether you're hosting an elegant event or a high-energy festival, this tent provides exceptional performance and style.
Key Features
M2 / EC Series 203 x 112/200 x 120/250 x 120 | ||||
ITEM | SPECIFICATION | |||
Clear-Span Width | 10m | 15m | 20m | 25m |
Eave Height | 4m | |||
Ridge Height | 5.58m | 6.38m | 7.17m | 7.95m |
Roof Pitch | 18° | |||
Bay Distance | 5m | |||
Longest Component | 5.5m | 8.1m | 10.7m | 10.7m |
Minimum Tent Length | 10m | |||
Maxmimum Tent Length | No Limit | |||
Roof Fixing | Bar Tensioning | |||
Main Profile | 203 x 122 x 4mm (4-channel)/200 x 120 x 4mm (4-channel)/250 x 120 x 4mm (4-channel) | |||
Max Allowed Windspeed | 100km/hr 0.5kn/m² | |||
EaveConnection | Hot-dip galvanized steel insert | |||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
Printing | Full Roof Digital Printing available | |||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
Warranty | 10 Year Frame / 3 Year Fabric |
TopTent's A-Frame Marquee Tents are known for their robust construction, ease of setup, and long-term durability. Our tents are engineered with high-quality materials and precision design, ensuring superior performance in all weather conditions. The hot-dip galvanized steel insert connections provide additional stability and security, while the customizable options, such as thermal insulation and clear walls, allow for flexibility to meet your event's specific needs. With a 10-year frame warranty and 3-year PVC cover warranty, TopTent guarantees reliability, safety, and a hassle-free experience for any outdoor event.
