| Clear-Span Width: | 25m | Eave Height: | 4m |
|---|---|---|---|
| Ridge Height: | 8.99m | Main Profile: | 300 X 120 X 5mm (4-channel) |
| Max Allowed Windspeed: | 100km/hr 0.5kn/m2 | Connection: | Hot-dip Galvanized Steel Insert |
| Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
750g/Sqm Coloured PVC |
| Highlight: | Large Profile Exhibition Marquee,25m By 50m Exhibition Marquee,Large Profile A Frame Event Tent |
||
![]()
The 25x50m Aluminum A-Frame Marquee Tent from the L Series is specifically engineered to meet the demands of large-scale events such as exhibitions, trade shows, and fairs. With its robust construction and versatile design, it offers an elegant yet functional space for a variety of applications, ensuring a professional and memorable event experience.
Customization options
Customized logo
Customized size
Customized design
Customized color
Product Specifications
| L / BT Series 300 x 120 / 350 x 120 | ||||
| ITEM | SPECIFICATION | |||
| Clear-Span Width | 30m | 35m | 40m | 50m |
| Eave Height | 4m | |||
| Ridge Height | 8.99m | 9.8m | 10.42m | 12.25m |
| Roof Pitch | 18° | |||
| Bay Distance | 5m | |||
| Longest Component | 10.7m | 10.7m | 10.7m | 11.24m |
| Minimum Tent Length | 10m | |||
| Maxmimum Tent Length | No Limit | |||
| Roof Fixing | Bar Tensioning | |||
| Main Profile | 300 x 120 x 5mm(4-channel) / 350 x 120 x 5mm (4-channel) | |||
| Max Allowed Windspeed | 100km/hr 0.5kn/m² | |||
| EaveConnection | Hot-dip galvanized steel insert | |||
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
| Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
| Printing | Full Roof Digital Printing available | |||
| Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
| Warranty | 10 Year Frame / 3 Year Fabric | |||
Customer feedback:

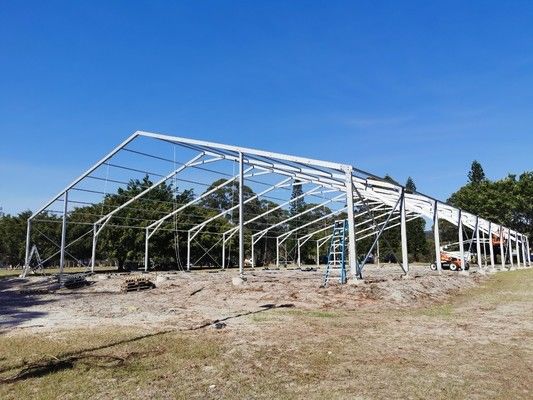

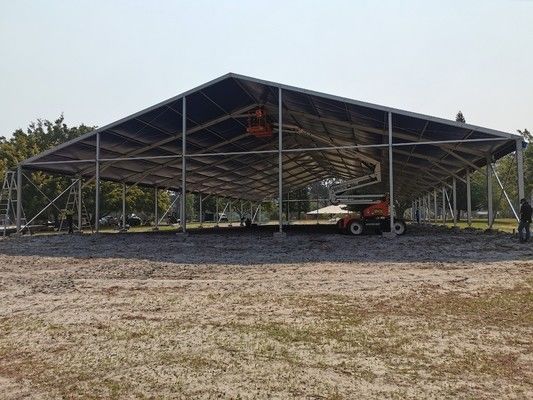

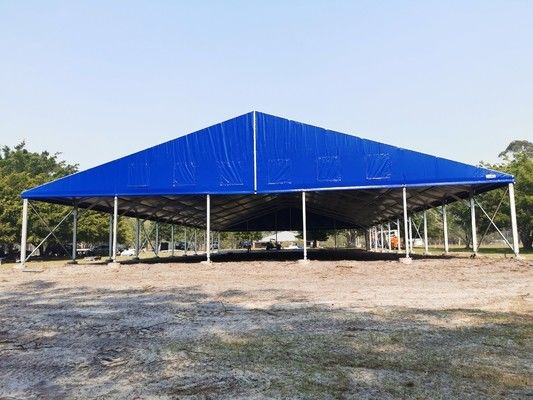

We ordered a 10x40m tent without windows. Overall the tent is fantastic. I recommend this store and this tent. Exceeded our expectations. We did a quick overnight setup to scope it (note the photo)ut, and it was simple, well designed, and very sturdy. We had 8 people, but it could be setup with 4 people easily.
![]()
