Product Details:
Payment & Shipping Terms:
|
Clear-Span Width: | 9m | Eave Height: | 2.6m |
---|---|---|---|
Ridge Height: | 4.34m | Main Profile: | 100 X 48 X 3mm (4-channel) |
Max Allowed Windspeed: | 80km/hr 0.3kn/m2 | Eave Connection: | Hot-dip Galvanized Steel Insert |
Framework Material: | Hard Pressed Extruded Aluminium 6061/T6(13HW) | Cover Material Wall Fabric: |
650g/Sqm White PVC 850g/Sqm White PVC |
Manufacturer's Warranty: | 10 Year Frame 3 Year White PVC |
Applications: | Church Event |
Highlight: | White Top large event marquee,Church Event Aluminium Frame Tent,White Top Wall Aluminium Frame Tent |

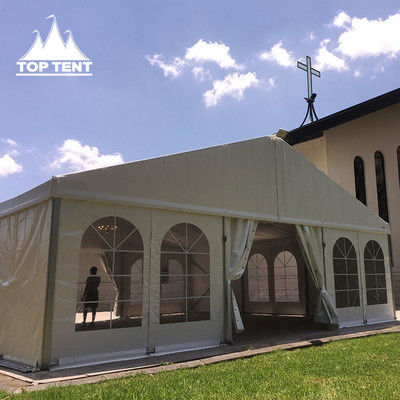

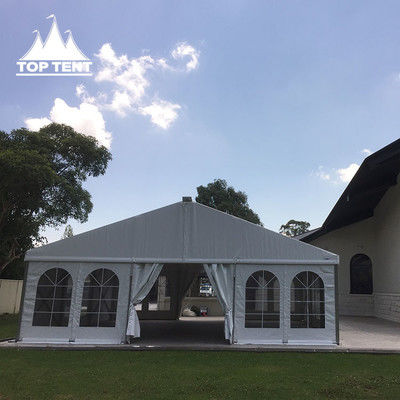

Aluminium A Frame Marquee Tent Canopy White Top Wall with Windows for Church Event
Imagine a pristine white tent gracefully set on a lush green lawn, with a charming stone patio nearby. This is the S Series Aluminum Clear Span A-Frame Tent Canopy, a versatile solution for weddings, parties, and professional gatherings.
Designed for Versatility:
Ease of Use and Aesthetic Appeal:
Key Features
S2 / FD Series 100 x 48 | ||||
ITEM | SPECIFICATION | |||
Clear-Span Width | 8m | 9m | 10m | 12m |
Eave Height | 2.6m | |||
Ridge Height | 4.19m | 4.34m | 4.52m | 4.87m |
Roof Pitch | 20° | |||
Bay Distance | 3m | |||
Longest Component | 4.4m | 4.8m | 5.35m | 6.35m |
Minimum Tent Length | 6m | |||
Maxmimum Tent Length | No Limit | |||
Roof Fixing | Bar Tensioning | |||
Main Profile | 100 x 48 x 3mm (4-channel) | |||
Max Allowed Windspeed | 80km/hr 0.3kn/m² | |||
EaveConnection | Hot-dip galvanized steel insert | |||
Framework Material | Hard pressed extruded aluminium 6061/T6 (13HW) | |||
Cover Material Wall Fabric | 850gsm White or Coloured PVC 950gsm Clear PVC |
650gsm White PVC 850gsm Coloured PVC 950gsm Clear PVC |
||
Printing | Full Roof Digital Printing available | |||
Engineer Certification | Engineer Structural Certificate, Resistance of Fabrics to Water Penetration Test, Ultra Violet Protection Test, Fire Action Analysis | |||
Warranty | 10 Year Frame / 3 Year Fabric |
Why Choose the Top Tent A Frame Marquee Tent?
The A-Frame marquee tent is a versatile, durable, and cost-effective solution suitable for Church events. Its clear-span structure offers unobstructed interior space, allowing flexible layouts and maximum usability. Built with aluminium frames and weather-resistant fabrics, it can withstand harsh environmental conditions, ensuring safety and reliability.
This tent serves as an excellent starting point for anyone exploring clear-span tents, catering to moderate-scale events. For larger events, consider the G, M, and L Series tents, offering enhanced features and sizes. The S Series is backed by years of industry experience, emphasizing safety and quality. Let the S Series be the foundation for your next unforgettable event.
